| Place of Origin: | China |
| ชื่อแบรนด์: | JVT |
| ได้รับการรับรอง: | UL ,RoHS ,REACH |
| Model Number: | JVT 5001 |
| Minimum Order Quantity: | 2000 |
|---|---|
| ราคา: | 0.001 |
| Packaging Details: | Tape&Reel |
| Delivery Time: | 5-7days |
| Payment Terms: | T/T |
| Supply Ability: | 500000pcs per day |
| Pitch: | 3.96mm | Poles: | 2-16 |
|---|---|---|---|
| Terminal thickness: | 0.25±0.5mm | Wire range: | 18AWG-22AWG |
| Terinal material: | Bronze/Brass | Housing material&Wafer miterial: | PA66 UL94v-0 |

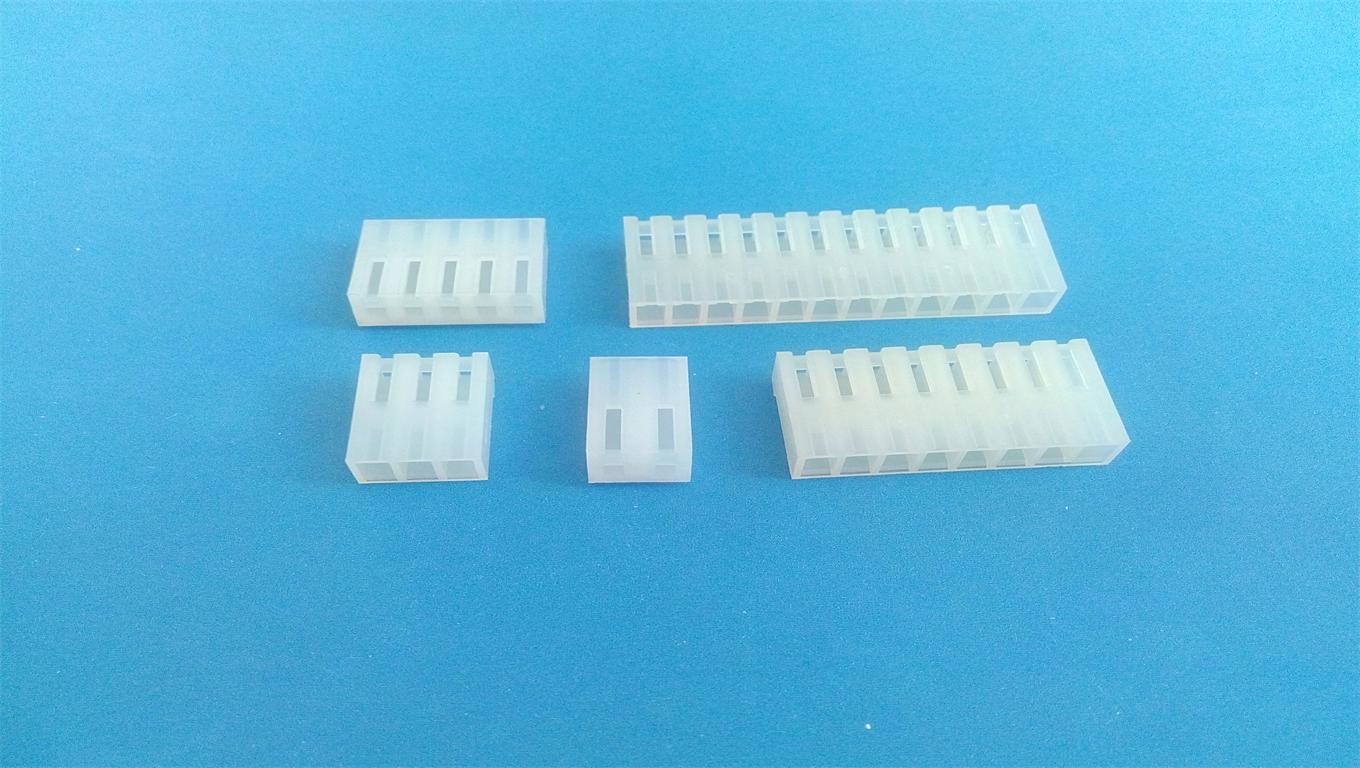

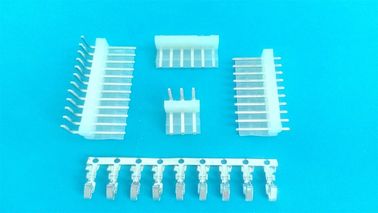

Pitch 3.96mm Terminal Housing&Wafer,Wire to board connector,Poles 2-16
JVT offer a complete range of board to board and wire to board connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .
All are offered with small moq's ,the majority being stocked items .
Specification:
| Terminal Material | Bronze/Brass |
|---|---|
| Wire Range | 18AWG-22AWG |
| Contact Resistance | 10mΩ |
| Insulation Resistance | 1000MΩ |
| Poles |
2-16
|
| Voltage Rating | 250v AC/DC |
| Current Rating | 7A AC/DC |
| Temperature Range | -25°C ... +85°C |
| Withstanding voltage | 1500V AC/minute |
Primary Competitive Advantages:
Country of Origin
Packaging
Small Orders Accepted
Quality Approvals
Innovative Service
Superiority of price
