| Place of Origin: | China |
| ชื่อแบรนด์: | JVT |
| ได้รับการรับรอง: | UL ,RoHS ,REACH |
| Model Number: | JVT 1105 |
| Minimum Order Quantity: | 1000 |
|---|---|
| ราคา: | Negotiation |
| Packaging Details: | Tape&Reel |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500000pcs per day |
| Category: | Wire to Board Connector | Poles: | 2*2-2*40 |
|---|---|---|---|
| Pitch: | 2.54mm | Color: | Black |
| Type: | Crimp Style Connector | Material: | PBT UL94V-0 |
Double Row Wire to Board Connector,2.54mm,3Pin -17Pin,Crimp Style Connector
JVT offer a complete range of board to board and wire to board connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .
All are offered with small moq's ,the majority being stocked items .
Specification:
| Temperature range | -25°C - +85°C |
|---|---|
| Contact Resistance | 20mΩ |
| Insulation Resistance | 1000MΩ |
| Poles |
2*2-2*40
|
| Voltage Rating | 250V AC/DC |
| Current Rating | 3A AC/DC |
| Withstanding voltage | 1000V AC/minute |

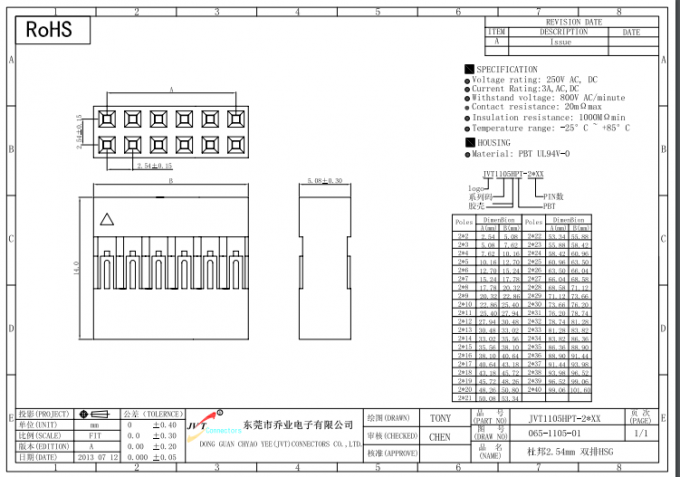

Drawings:
Payment Details:
Payment Terms:T/T or Western Union
Minimum Order:1000 Pieces
♦ Asia
♦ Australia
♦ Central/South America
♦ Mid East/Africa
♦ North America
Primary Competitive Advantages:
• Country of Origin
• Packaging
• Small Orders Accepted
• Quality Approvals
• Innovative Service
• Superiority of price
