| Place of Origin: | China |
| ชื่อแบรนด์: | JVT |
| ได้รับการรับรอง: | ISO9001/SGS/UL/ROHS/Reach |
| Model Number: | JVT2017HNO-05 |
| Minimum Order Quantity: | 1000 PCS |
|---|---|
| ราคา: | Negotiation |
| Packaging Details: | PE bag packing +outer carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T or Western Union |
| Supply Ability: | 300000 per month |
| pitch: | 2.0mm | type: | wire to board connector |
|---|---|---|---|
| Gender: | Male | color: | white |
| Material - Metal: | Phosphor Bronze | Packaging Type: | bag |

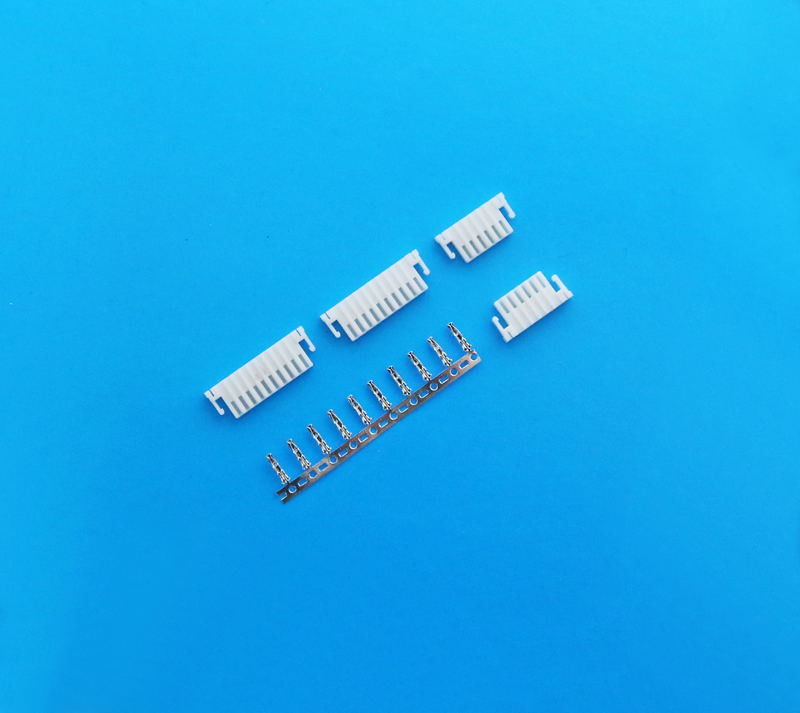

YH 2.0mm Pitch housing Wire to Board Connector with Locking ,Tin Plating
Datasheet (PDF) & Other Documents Download center:
Specification Standardized:
|
Pitch |
2.0mm |
|
Cuic |
2-16 |
|
Applicable wire |
AWG 22-28 |
|
Rating Voltage |
250V AC/DC |
|
Rating Current |
3A AC/DC |
|
Withstand voltage |
1000V AC/minute |
|
Operating temperature |
-25°C to +85°C |
|
Insulation resistance |
1000MΩ Min |
|
Contact resistance |
20MΩ Max. |
Material Specification:
Terminal: Phosphor Bronze ,Tin plated /gold plated
Housing: PA66,UL94V-0
Wafer: Nylon 66 UL94V-0
PIN: Brass,Gold plated/Tin plated
Payment Details:
Payment Terms:T/T or Western Union
Minimum Order:1000 Pieces
|
|
Equipment and Service:
10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines
prefessional and patient pre-service & after-service
professsional sales team & engineering team & techinology team
puntual delivery time and complete packaging process
preferable price and best quality
