| Place of Origin: | China |
| ชื่อแบรนด์: | JVT |
| ได้รับการรับรอง: | ISO9001/SGS/UL/ROHS/Reach |
| Model Number: | JVT4001W |
| Minimum Order Quantity: | 1000 PCS |
|---|---|
| ราคา: | Negotiation |
| Packaging Details: | PE bag packing +outer carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T or Western Union |
| Supply Ability: | 300000 per month |
| Category: | PCB Board Wafer | Application: | PCB Board Connector |
|---|---|---|---|
| Orientation: | Vertical | contact: | 2-14 |
| Applicable wires: | AWG 26-18 | Current rating: | 5A AC/DC |
Pin header 3.96mm pitch/single row/ straight pcb board connector /2pin
Datasheet (PDF) & Other Documents Download center:
CONNETTORI SCHEDA-FILO PASSO 3.96MM ,3961 Maschio Dritto,2-14n. posizioni

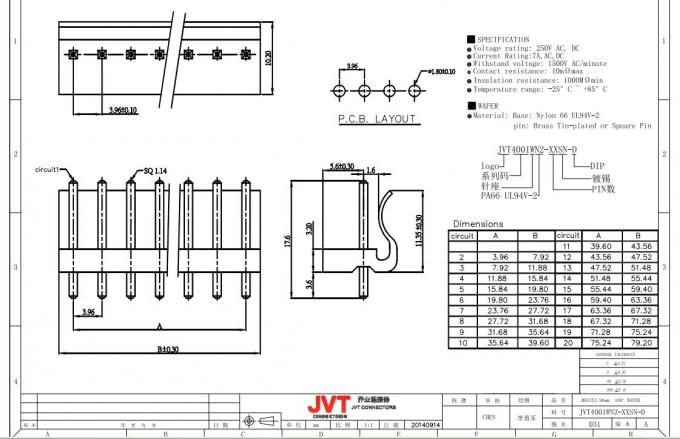

Standard Specification:
JVT offer a complete range of board to board and board to wire connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .
All are offered with small moq's ,the majority being stocked items .
Payment Details:
Payment Terms:T/T or Western Union
Minimum Order:1000 Pieces
|
