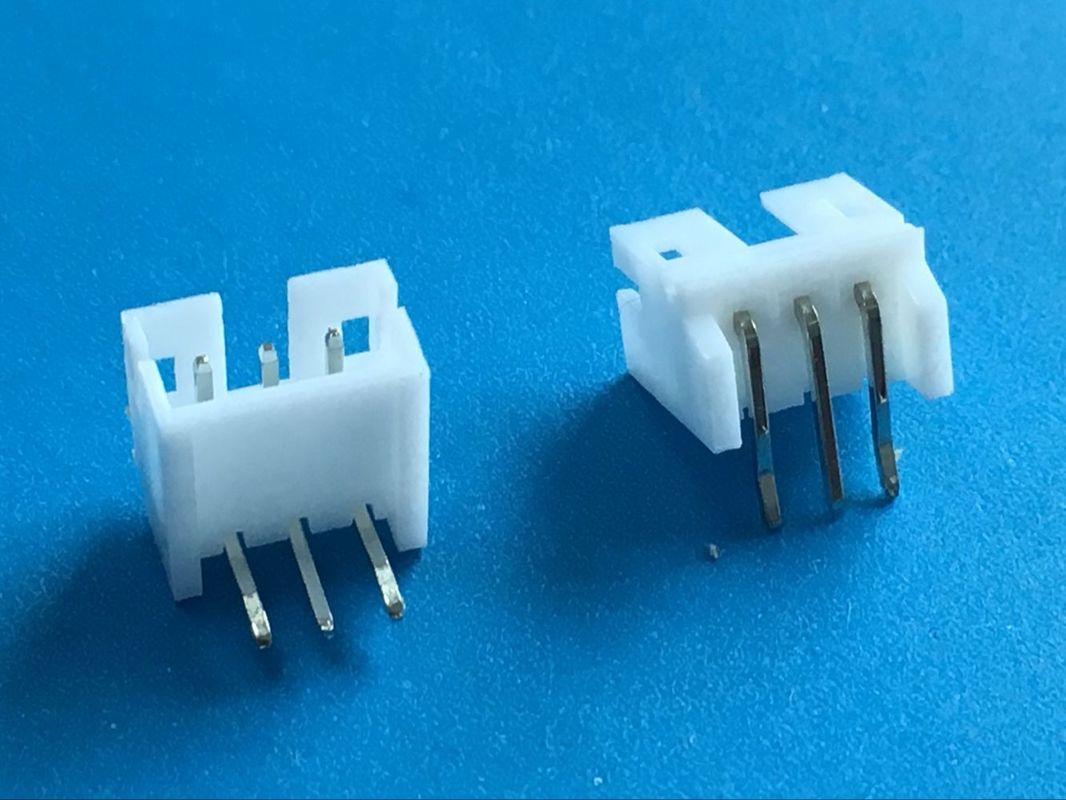

Pcb Socket Connector Through Hole 3 Pin Right Angle Connector Shrouded Header Type

Pcb Socket Connector Through Hole 3 Pin Right Angle Connector Shrouded Header Type

Pcb Socket Connector Through Hole 3 Pin Right Angle Connector Shrouded Header Type

รายละเอียดสินค้า:

Place of Origin: China
ชื่อแบรนด์: JVT
ได้รับการรับรอง: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT1125

การชำระเงิน:

Minimum Order Quantity: 1000 PCS
ราคา: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union
Supply Ability: 300000 per month
ติดต่อตอนนี้
รายละเอียดสินค้า
Category: PCB Board Wafer Application: PCB Board Connector
Orientation: Vertical Number of PIns: 3

JST Right-Angle Connector - Through-Hole 3-Pin PH series , The pins are spaced by 2mm,shrouded header type



Datasheet (PDF) download :

1.JVT1125WN2-XXSNXK-D(YFY) Model (1).pdf



Material Specification:



Terminal: Phosphor Bronze or Brass ,Tin plated

Housing: PA66,UL94V-0

Wafer: Nylon 66 UL94V-0

PIN: Brass ,Tin plated



Standard Specification:



Pitch

2.0mm

Contacts

 3

Applicable wire

AWG#32-26

Voltage rating

250V AC/DC

Current rating

5A AC/DC

Withstand voltage

1500V AC/minute

Working temperature

-25°C to +85°C

Insulation resistance

800MΩ Min

Contact resistance

20MΩ Max





Payment Details:



Payment Terms:T/T or Western Union



Minimum Order:1000 Pieces



JVT offer a complete range of board to board and board to wire connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .

All are offered with small moq's ,the majority being stocked items .

Primary Competitive Advantages:

  • Service
  • Country of Origin
  • Experienced Staff
  • Guarantee/Warranty
  • International Approvals
  • Price
  • Prompt Delivery
  • Quality Approvals





Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • North America







Equipment and Service:



10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines



prefessional and patient pre-service & after-service



professsional sales team & engineering team & techinology team



puntual delivery time and complete packaging process



preferable price and best quality
