| Place of Origin: | China |
| ชื่อแบรนด์: | JVT |
| ได้รับการรับรอง: | ISO9001/SGS/UL/ROHS/Reach |
| Model Number: | JVT2501 |
| Minimum Order Quantity: | 1000 PCS |
|---|---|
| ราคา: | Negotiation |
| Packaging Details: | PE bag packing +outer carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T or Western Union |
| Supply Ability: | 300000 per month |
| Series: | XHB connector | pitch: | 2.5mm |
|---|---|---|---|
| rating current: | 3A AC / DC | contact material: | brass |
| contact resistance: | 20MΩ Min |
XHB 2.5mm 6pin male housing Electrical connectors , natural color , application for PCB wire to Board
Specification Standardized:
Pitch: 2.5mm
Poles: 2-12
Applicable wire: AWG#22-28
Voltage rating: 250V AC/DC
Current rating: 3A AC/DC
Withstand voltage: 1000V AC/minute
Working temperature: -25°C to +85°C
Insulation resistance: 1000MΩ Min
Contact resistance: 20MΩ Max.
Material Specification :
Terminal: Phosphor Bronze or Brass ,Tin plated
Housing: Nylon 66 UL94V-0
Wafer: Nylon 66 UL94V-0
PIN: Brass ,Tin plated

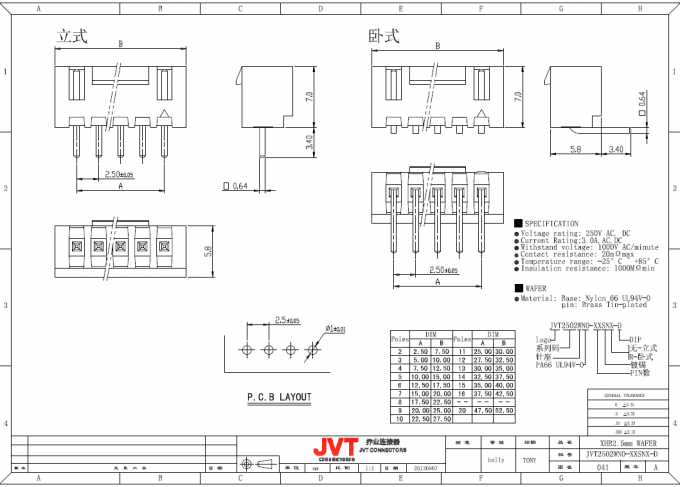

Drawing
Payment Details:
Payment Terms:T/T or Western Union
Minimum Order:1000 Pieces
Our advantage
|
Favorable unit price
|
|
Strict quality control
|
|
Shortest lead time
|
|
Professional team( from Tool esigning stamping,Injection molding assembling,Testing to packing)
|
|
Accelerated equipments:10 automated injection molding
20 automated pin - setting
6 high precision stamping machines
|
|
|
