| Place of Origin: | China |
| ชื่อแบรนด์: | JVT |
| ได้รับการรับรอง: | ISO9001/SGS/UL/ROHS/Reach |
| Model Number: | JVT2547H25-2XX-U65D30 |
| Minimum Order Quantity: | 5000 PCS |
|---|---|
| ราคา: | Negotiation |
| Packaging Details: | PE bag packing +outer carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T or Western Union |
| Supply Ability: | 300000 per month |
| Pitch: | 2.54mm | No.of pins: | 2*3 |
|---|---|---|---|
| Type of Row: | Dual Row | Color: | Black |
| Plating: | Gold Flash | Standard: | PBT |

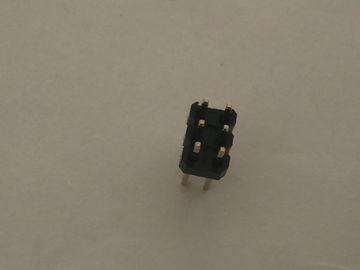

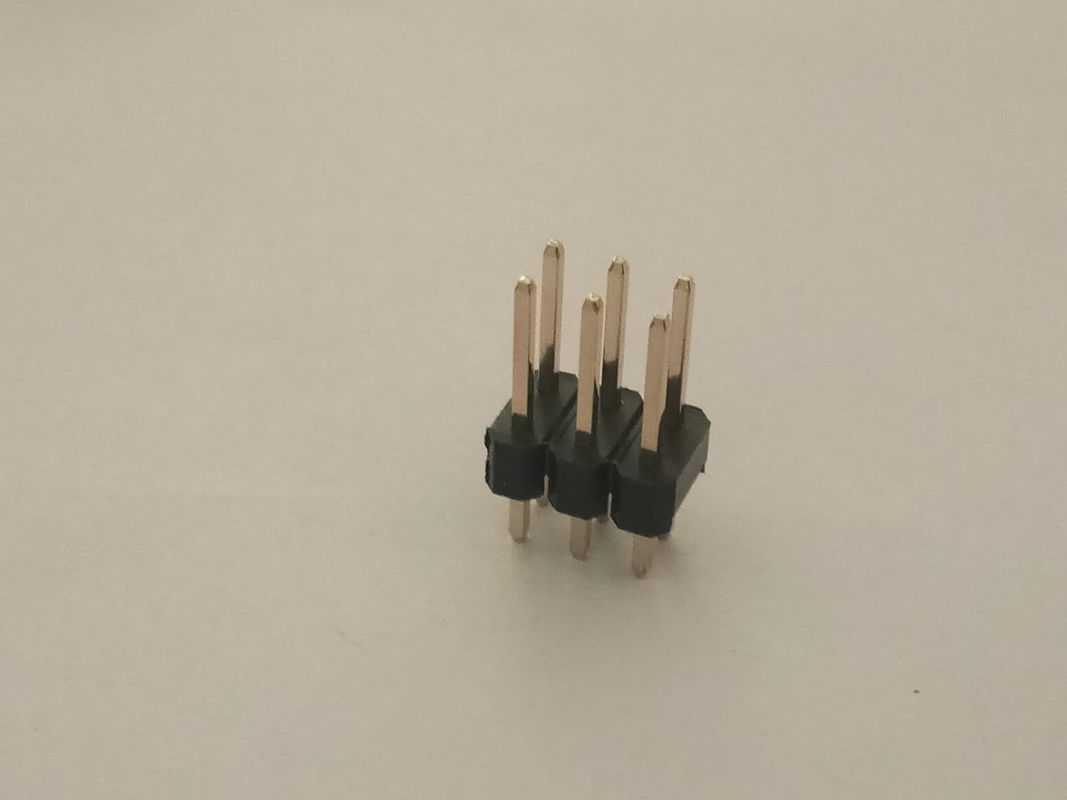

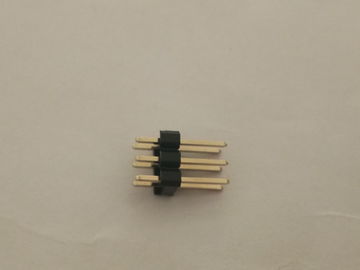

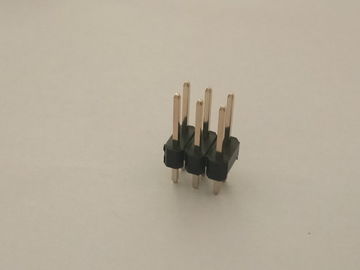

Pitich 2.54mm SMT Pin Header Connector , Black Color Single Row Electrical Pins Connectors
Specification Standardized:
| Pitch |
2.54mm |
|
Pins |
2*3 |
|
Applicable wire |
#28-32 |
|
Rating Voltage |
500V AC/DC |
|
Rating Current |
3A AC/DC |
|
Withstand voltage |
1000V AC/minute |
|
Operating temperature |
-40°C to +85°C |
|
Insulation resistance |
1000MΩ Min |
|
Contact resistance |
20MΩ Max. |
Material Specification :
Housing: PBT,UL94V-0
PIN: Brass,Gold plated
Drawing:
Payment Details:
Payment Terms:T/T or Western Union
Minimum Order:5000 Pieces
|
|
Equipment and Service:
10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines
prefessional and patient pre-service & after-service
professsional sales team & engineering team & techinology team
puntual delivery time and complete packaging process
preferable price and best quality
