| Place of Origin: | China |
| ชื่อแบรนด์: | JVT |
| ได้รับการรับรอง: | ISO9001/SGS/UL/ROHS/Reach |
| Model Number: | JVT2547 |
| Minimum Order Quantity: | 1000 PCS |
|---|---|
| ราคา: | Negotiation |
| Packaging Details: | PE bag packing +outer carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T or Western Union |
| Supply Ability: | 300000 per month |
| Pitch: | 2.54mm | No.of poles: | 2-50 |
|---|---|---|---|
| Type of Row: | dual row ,single row | Housing color: | Black |
| PCB Mounting Orientation: | Staright | Connector System: | Board-to-Board |

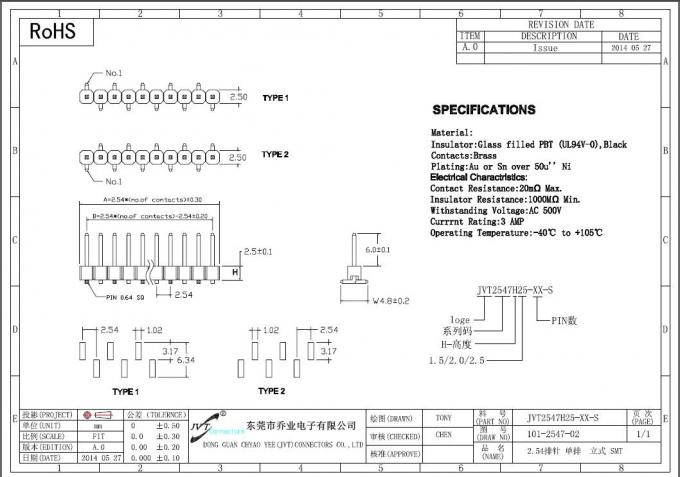

SMT Dual Body Pin Headers, 2.54mm Pitch, Single/Double Row ,packaging In tubes w/o Pick&Place-Pads
Datasheet (PDF) & Other Documents Download center:
2.PCB SMT header connector.pdf
Specification Standardized:
| Pitch |
2.54mm |
|
Poles |
2-50 |
|
Rating Voltage |
200V AC/DC |
|
Rating Current |
3A AC/DC |
|
Withstand voltage |
1000V AC/minute |
|
Operating temperature |
-40°C to +85°C |
|
Insulation resistance |
1000MΩ Min |
|
Contact resistance |
20MΩ Max. |
Payment Details:
Payment Terms:T/T or Western Union
Minimum Order:1000 Pieces
