| Place of Origin: | China |
| ชื่อแบรนด์: | JVT |
| ได้รับการรับรอง: | ISO9001/SGS/UL/ROHS/Reach |
| Model Number: | JVT5085H25LP-XX-U35D80 |
| Minimum Order Quantity: | 5000 PCS |
|---|---|
| ราคา: | Negotiation |
| Packaging Details: | PE bag packing +outer carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T or Western Union |
| Supply Ability: | 300000 per week |
| Pitch: | 5.08mm | Type: | Right Angle |
|---|---|---|---|
| Type of Row: | Single | Color: | Black |
5.08mm Pitch Single Row Right Angle DIP Type Pin Header with 7A Current Rating
Specification Standardized:
| Pitch |
5.08mm |
|
Type |
Right Angle |
|
Standard |
LCP |
|
Rating Voltage |
200V AC/DC |
|
Rating Current |
7A AC/DC |
|
Withstand voltage |
500V AC/minute |
|
Operating temperature |
-40°C to +105°C |
|
Insulation resistance |
1000MΩ Min |
|
Contact resistance |
20MΩ Max. |

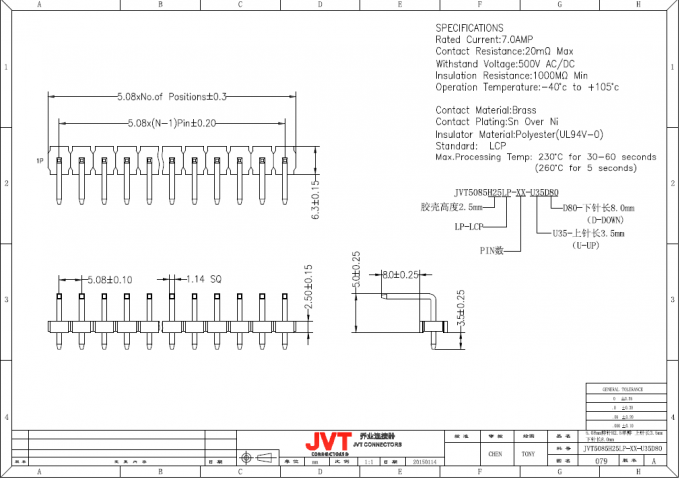

Drawing:
Payment Details:
Payment Terms:T/T in advance
Minimum Order:5000 Pieces
|
|
Equipment and Service:
10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines
prefessional and patient pre-service & after-service
professsional sales team & engineering team & techinology team
puntual delivery time and complete packaging process
preferable price and best quality
