| Place of Origin: | China |
| ชื่อแบรนด์: | JVT |
| ได้รับการรับรอง: | ISO9001/SGS/UL/ROHS/Reach |
| Model Number: | JVT1224 |
| Minimum Order Quantity: | 10000 PCS |
|---|---|
| ราคา: | Negotiation |
| Packaging Details: | PE bag packing +outer carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T or Western Union |
| Supply Ability: | 300000 per month |
| Pitch: | 1.2mm | Color: | Black |
|---|---|---|---|
| Rating Current: | 2A AC/DC | No.of Pins: | 3 |
| Equivalent: | Molex 1.2mm | Plated Style: | Gold-plated |

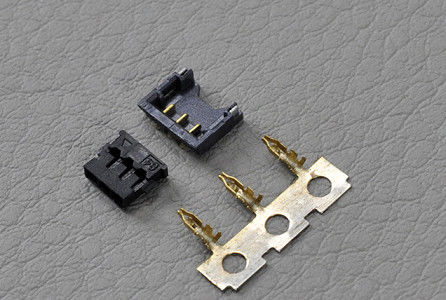

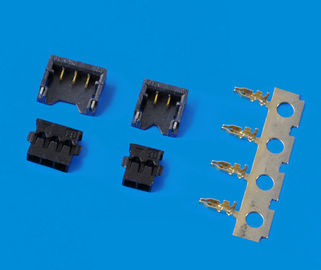

1.2mm Pitch 8 Pole Black Color Gold-plated SMT Header Connector
Technical Datasheet:
Specification Standardized:
| Pitch |
1.2mm
|
|
Poles |
8
|
|
Applicable wire |
28#
|
|
Rating Voltage |
50V AC/DC
|
|
Rating Current |
2A AC/DC
|
|
Withstand voltage |
500V AC/minute
|
|
Operating temperature |
-25°C to +85°C
|
|
Insulation resistance |
100MΩ Min
|
|
Contact resistance |
20MΩ Max.
|
Drawing
