| Place of Origin: | China |
| ชื่อแบรนด์: | JVT |
| ได้รับการรับรอง: | ISO9001/SGS/UL/ROHS/Reach |
| Model Number: | JVT1147W46-XXSNBE-D |
| Minimum Order Quantity: | 10000 PCS |
|---|---|
| ราคา: | Negotiation |
| Packaging Details: | PE bag packing +outer carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T or Western Union |
| Supply Ability: | 300000 per month |
| Category: | PCB Board Wafer | Application: | PCB Board Connector |
|---|---|---|---|
| Type: | DIP | Number of PIns: | 2#-16# |
PA66 Housing Brass 2 Pin Connector Tin Plated , 1.25mm Pitch SMT PCB Header Connector,side entry header ,tape &reel packaging
Material Specification:
Terminal: Phosphor Bronze or Brass ,Tin plated
Housing: PA66,UL94V-0
Wafer: Nylon 66 UL94V-0
PIN: Brass ,Tin plated
Standard Specification:
|
Pitch |
1.25mm |
|
Contacts |
2-16 |
|
Voltage rating |
125V AC/DC |
|
Current rating |
1A AC/DC |
|
Withstand voltage |
250V AC/minute |
|
Working temperature |
-25°C to +85°C |
|
Insulation resistance |
100MΩ Min |
|
Contact resistance |
20MΩ Max |

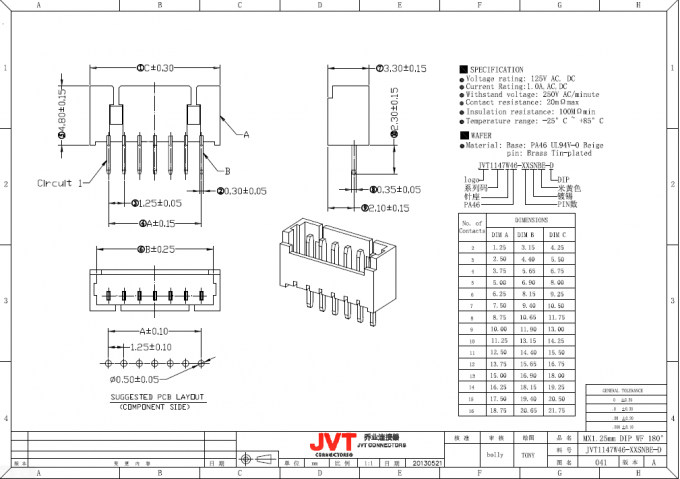

Drawing
Our advantage
|
Favorable unit price
|
|
Strict quality control
|
|
Shortest lead time
|
|
Professional team( from Tool esigning stamping,Injection molding assembling,Testing to packing)
|
|
Accelerated equipments:10 automated injection molding
20 automated pin - setting
6 high precision stamping machines
|
Payment Details:
Payment Terms:T/T or Western Union
Minimum Order:1000 Pieces
|
|
Equipment and Service:
10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines
prefessional and patient pre-service & after-service
professsional sales team & engineering team & techinology team
puntual delivery time and complete packaging process
preferable price and best quality
